1. Biasing Using a Drain-to-Gate Feedback Resistor

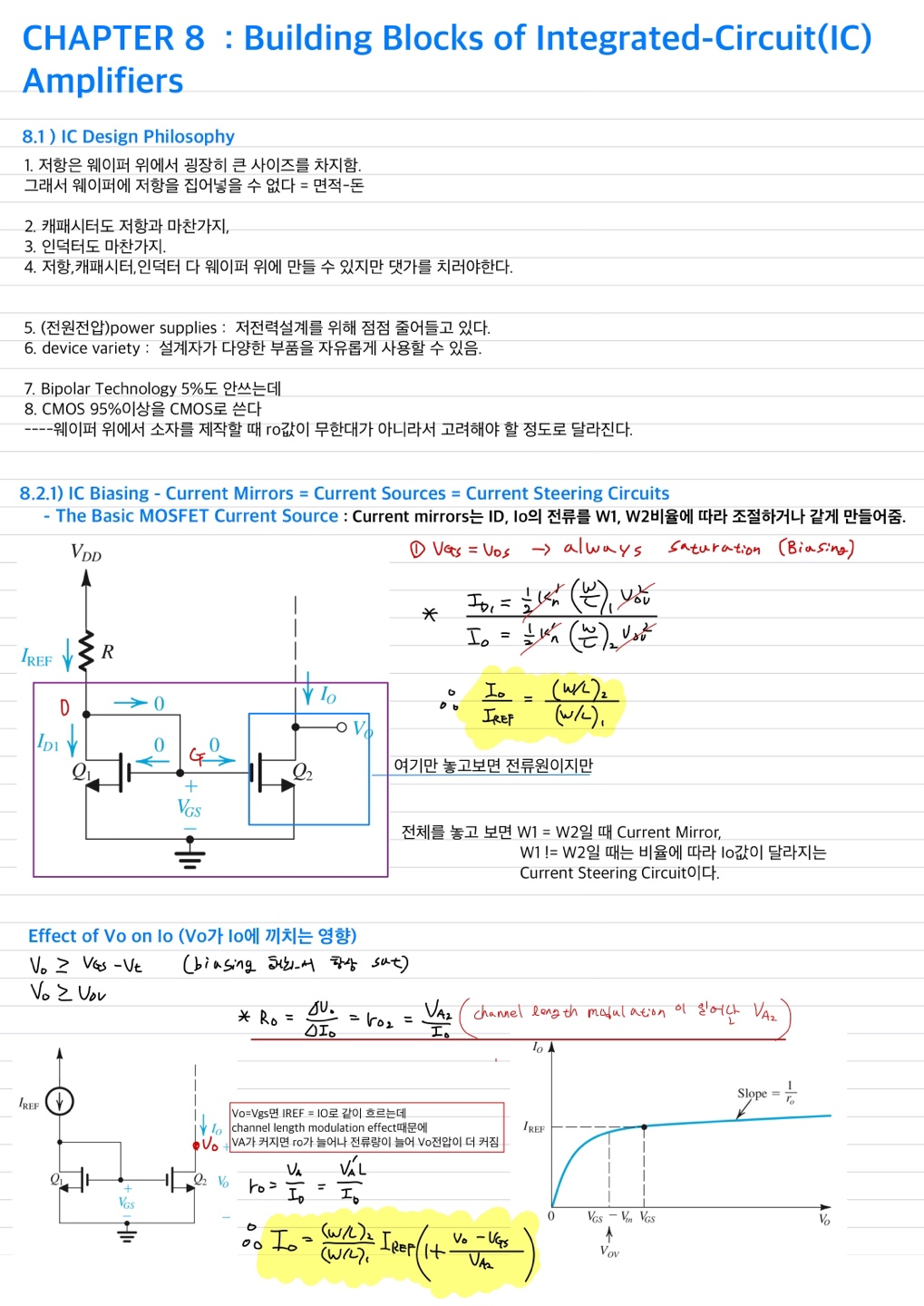

2. A Common-Source (CS) Amplifier
3. Building Blocks of Integrated-Circuit Amplifiers - IC Design Philosophy

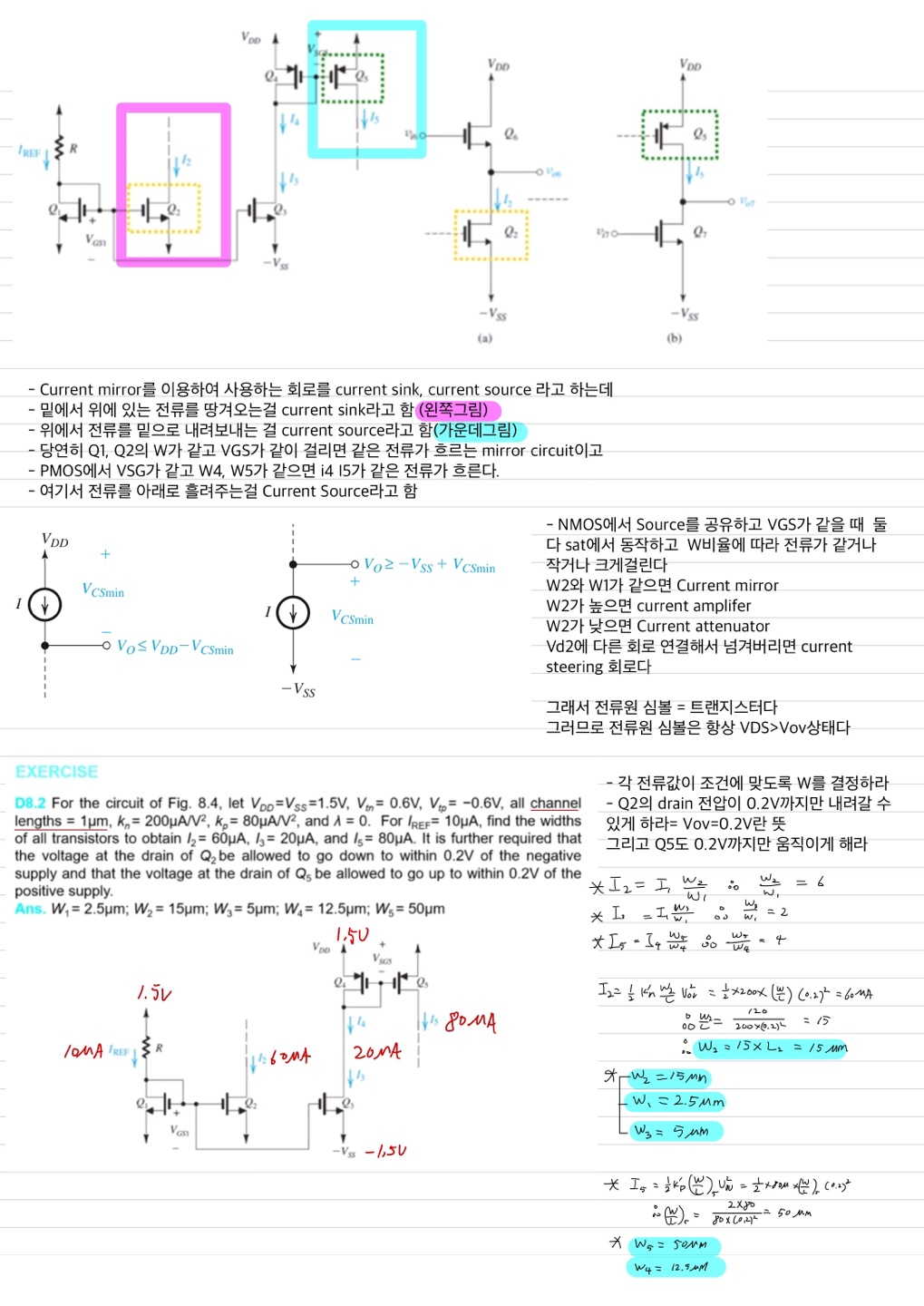

4. IC Biasing-Current Mirrors = Current Source = Current Steering Circuits

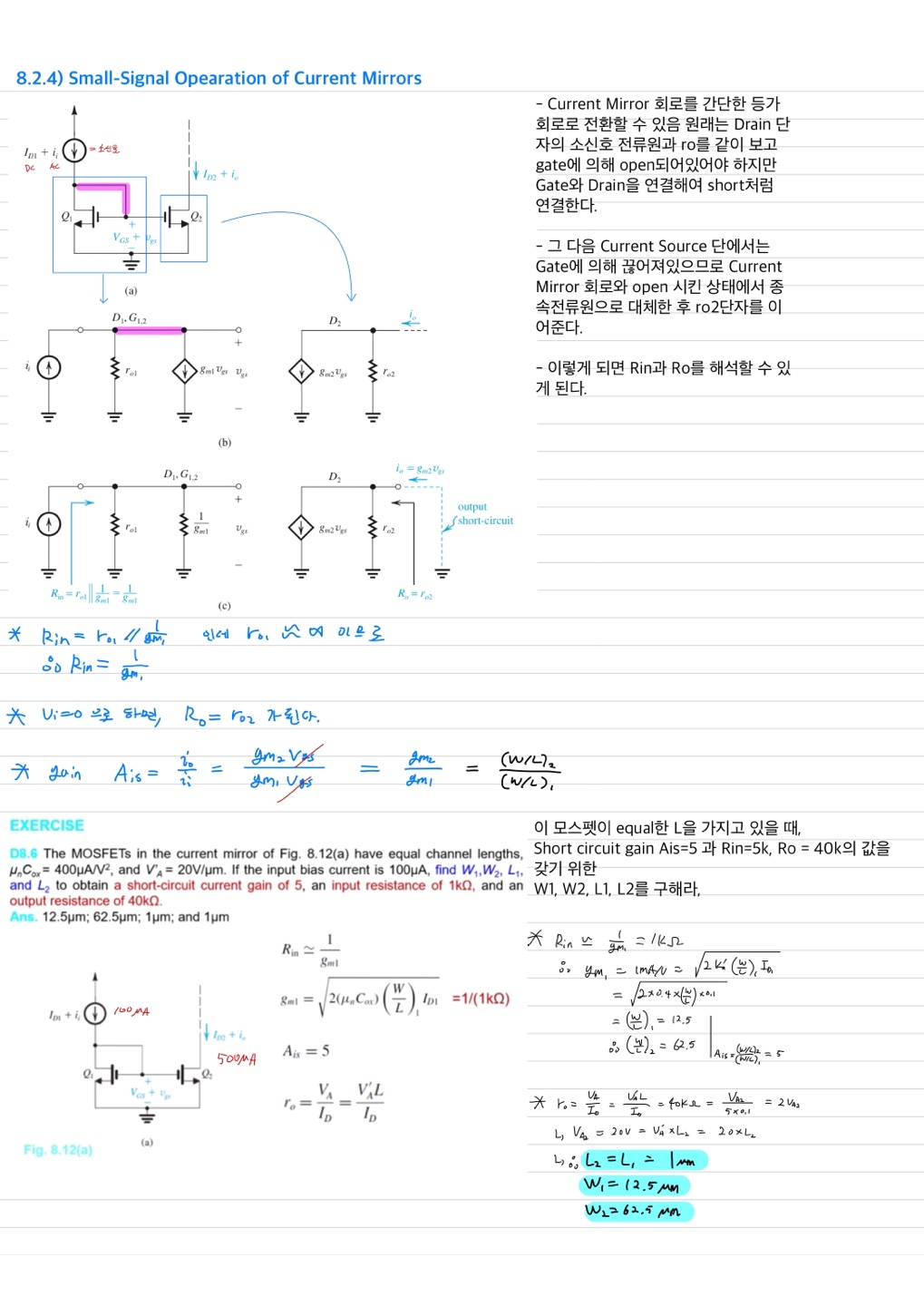

5. Small-Signal Opearation of Current Mirrors
