1. Basic Gain cell - Rd가 없는 current source

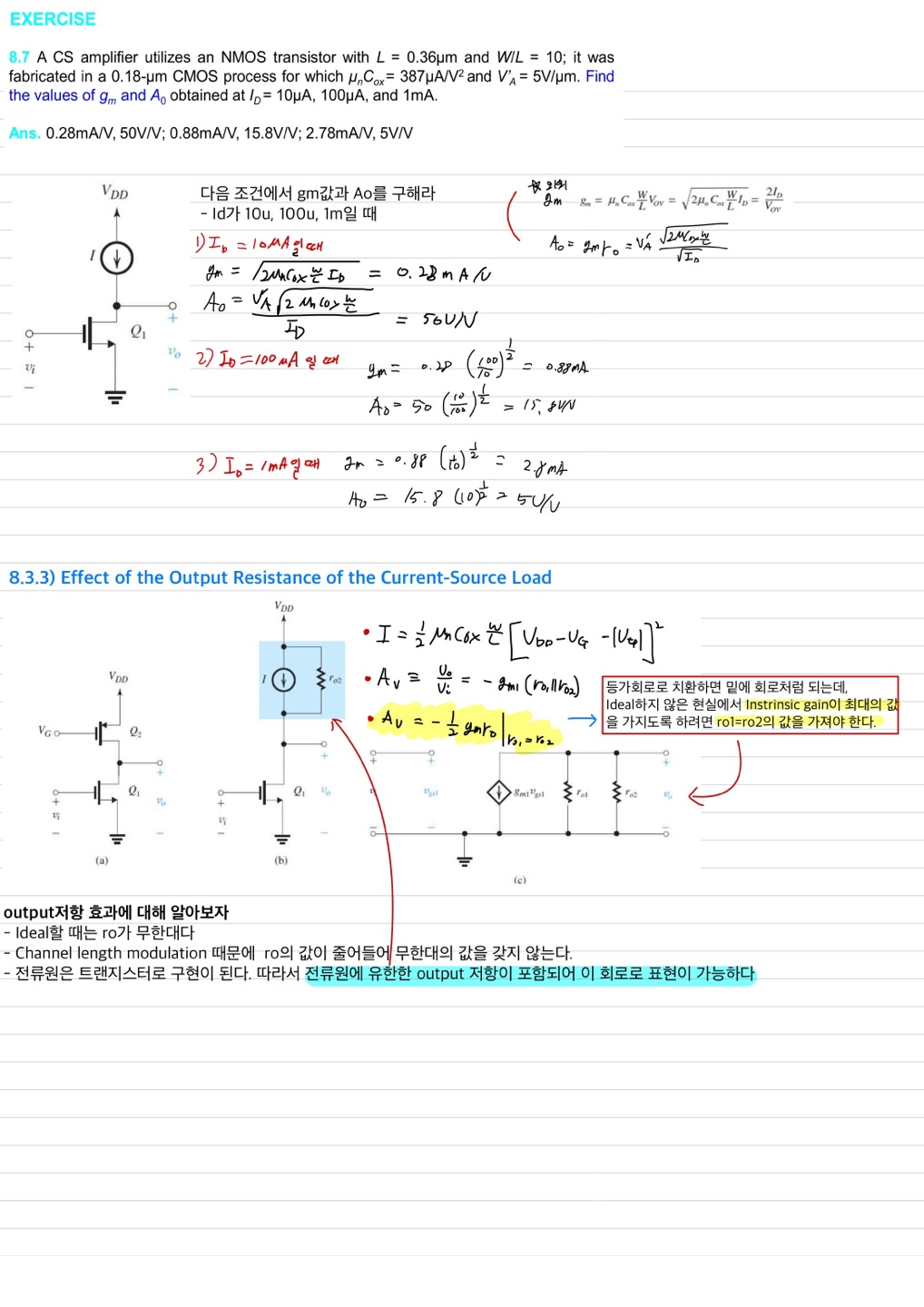

2. Intrinsic Gain

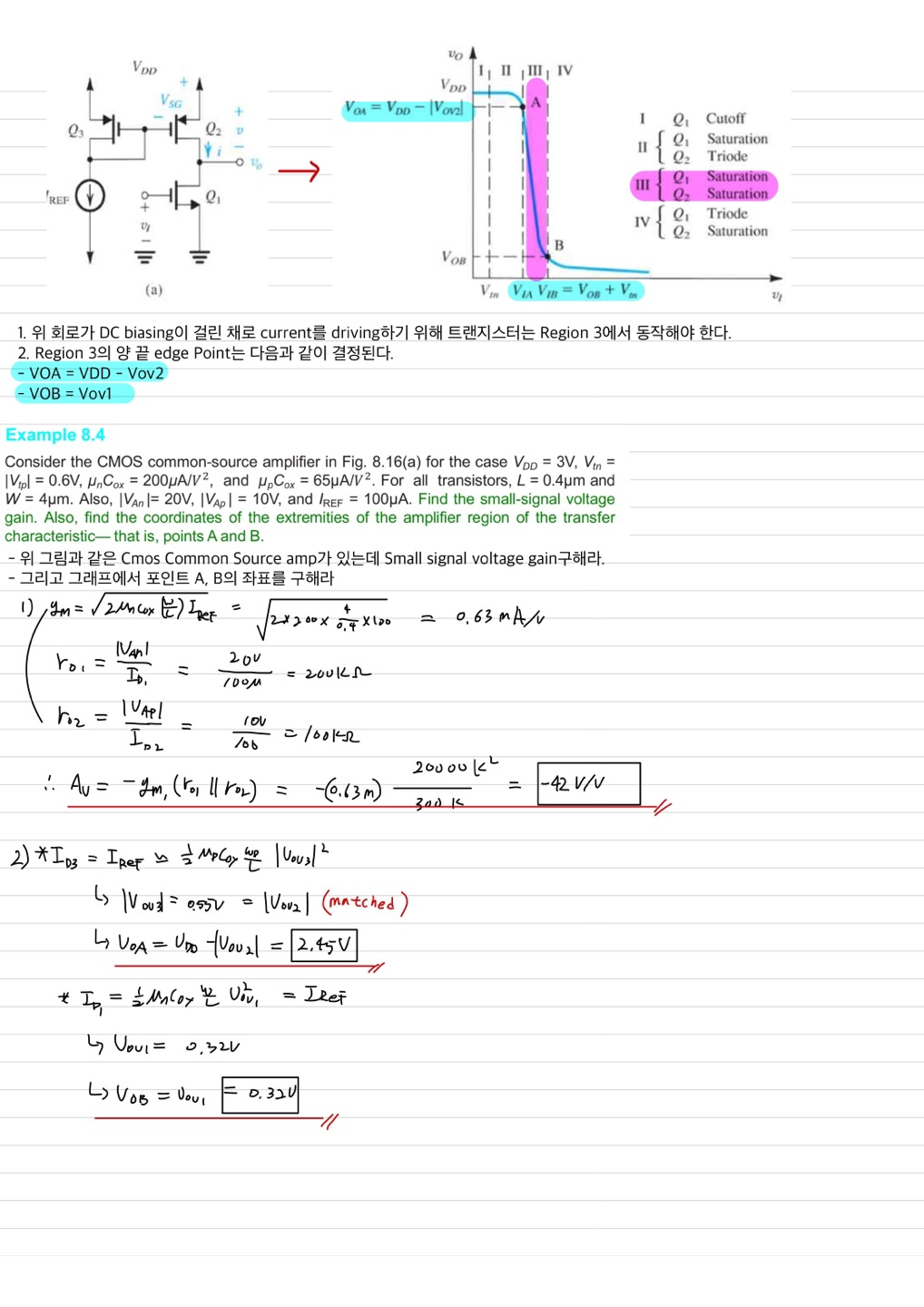

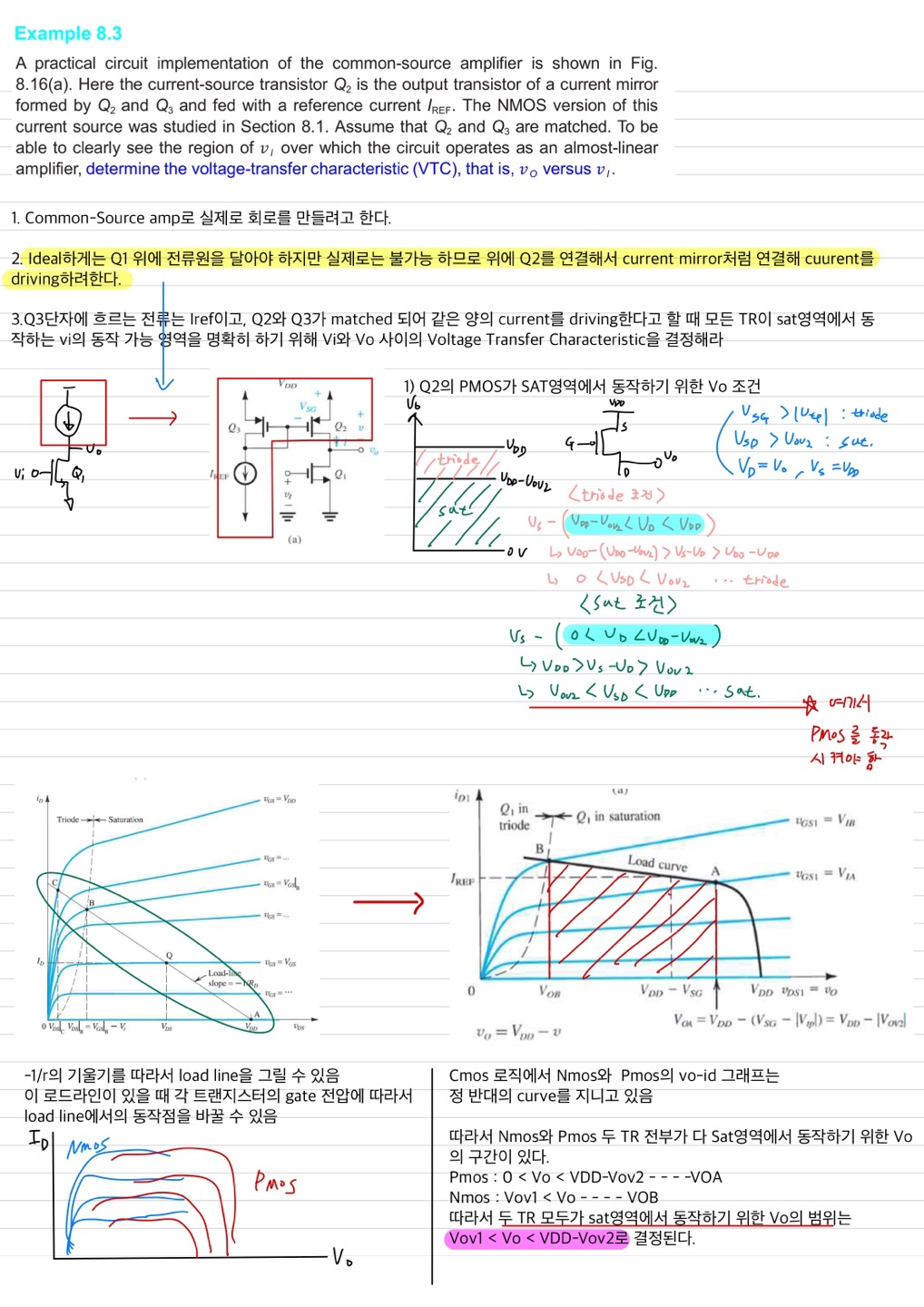

3. Ideal - > Practical Amplifer의 Current Source Voltage Transfer Characteristic

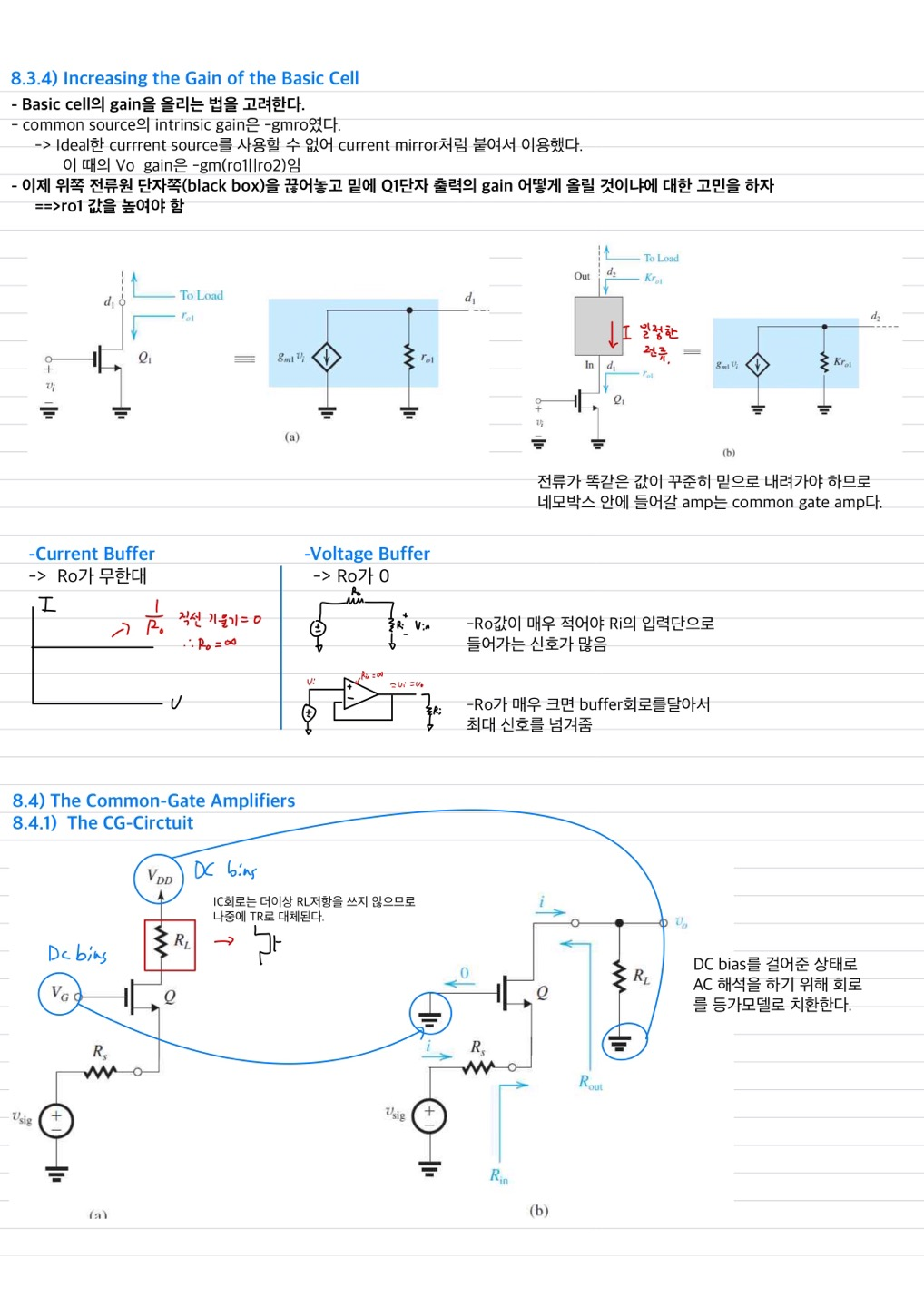

4. Increasing the gain of the Basic Cell
